+Features
✧ Using molecular sieve pressure swing adsorption principle, using air as raw material, physical oxygen production, eliminating the trouble of daily tank changing and inflation;
✧ One machine with multiple functions, to meet the needs of animal anesthesia machines for oxygen supply, postoperative oxygen supply, ICU oxygen supply, and emergency oxygen supply;

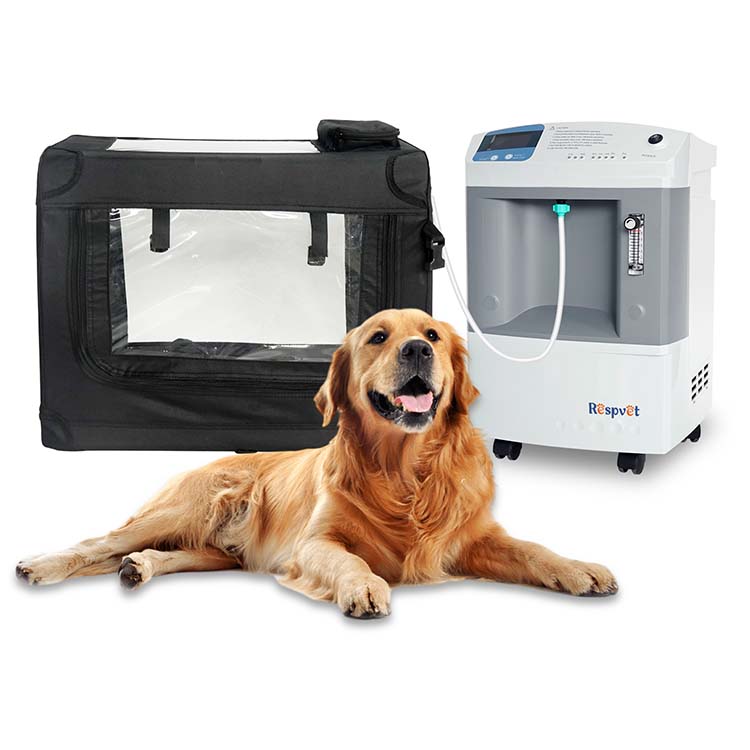

✧ With high outlet pressure, it can be connected to a cage and can be used as an anesthetic gas source for small animals less than 7kgs, such as cats and dogs;
✧ It meets the various clinical demands of veterinarians, and is widely applicable to the oxygen supply for veterinary clinic surgery, post-operation, ICU and emergency;
✧ Oxygen is supplied according to the time set by the user, and the oxygen production program is automatically stopped.
Specification
| VET-5KW ; VET-10 | |||
| Flow Rate | 0.5--5L/min ; 0.5--10L/min | Net weight | 15Kgs ; 27Kgs |
| Oxygen Concentration | 93% (±3%) | Power Consumption | ≤ 350W ; ≤ 880W |
| Outlet Pressure | 6-10 PSI (0.04-0.07 Mpa) | Input Frequency | 50Hz ; 60 Hz |
| Sound Level | ≤ 40dB; ≤ 50dB | Input Voltage | AC230V ± 10%；AC110V ±10% |
| Alarm |
1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen concentration alarm: When oxygen purity is >82%, blue light illuminate; When oxygen purity is <82%, red light illuminate, indicating low purity; |
||
Applications
✧ Oxygen Therapy: Animal wears an oxygen mask connected to an oxygen concentrator to inhale oxygen directly for treatment of some respiratory disease.
✧ Nebulizer Function: Longfian oxygen concentrator can be equipped with nebulizer function for animals to do nebulizer therapy. One device serves multiple functions, which greatly facilitates the operation.

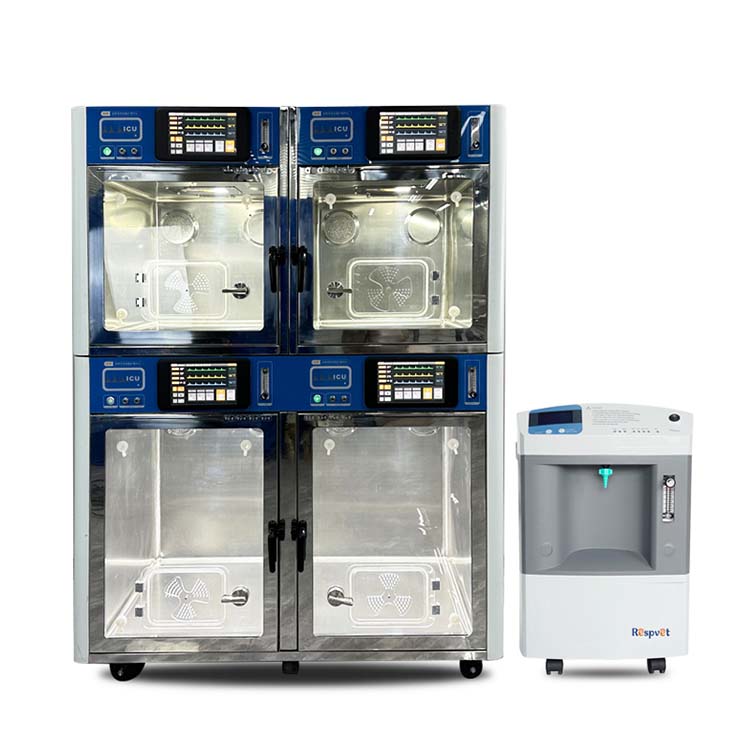

✧ In ICU and Oxygen Chamber: The oxygen concentrator provides continuous oxygen source to ICU or oxygen chamber.
✧ Anaesthesia: During the surgery of the sick pets, providing the anaesthesia machine stable and timely oxygen source through the oxygen concentrator, which greatly guarantees the smooth progress of the surgery.
