+Features
✧ The oxygen analyzer measures oxygen concentration flow using ultrasound technology. It has the characteristics of high accuracy, strong anti-interference ability, rapid response, long-term stability, no need for regular asjustment, and long lifespan;
✧ The pressure test adopts imported modules with high accuracy.
Specification

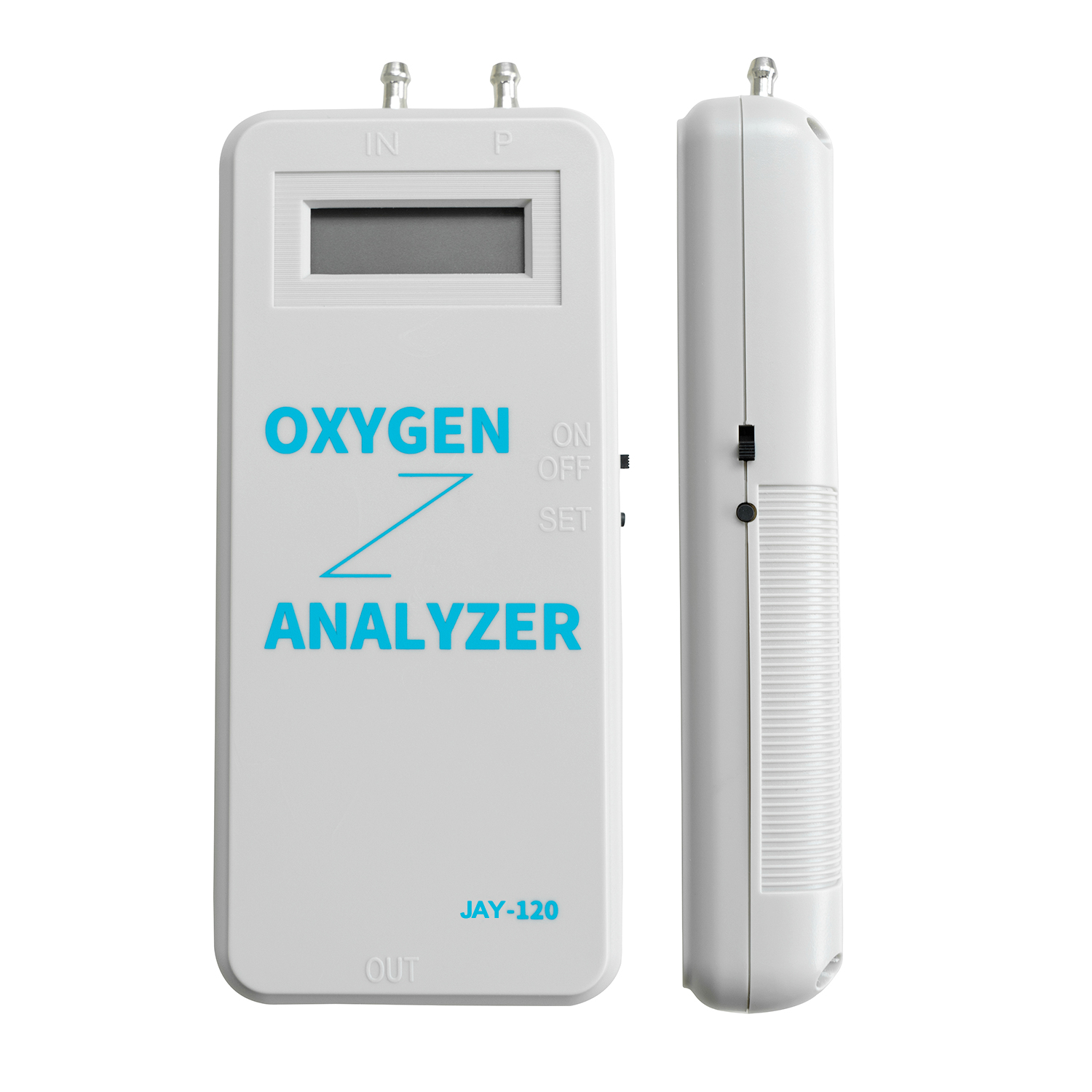

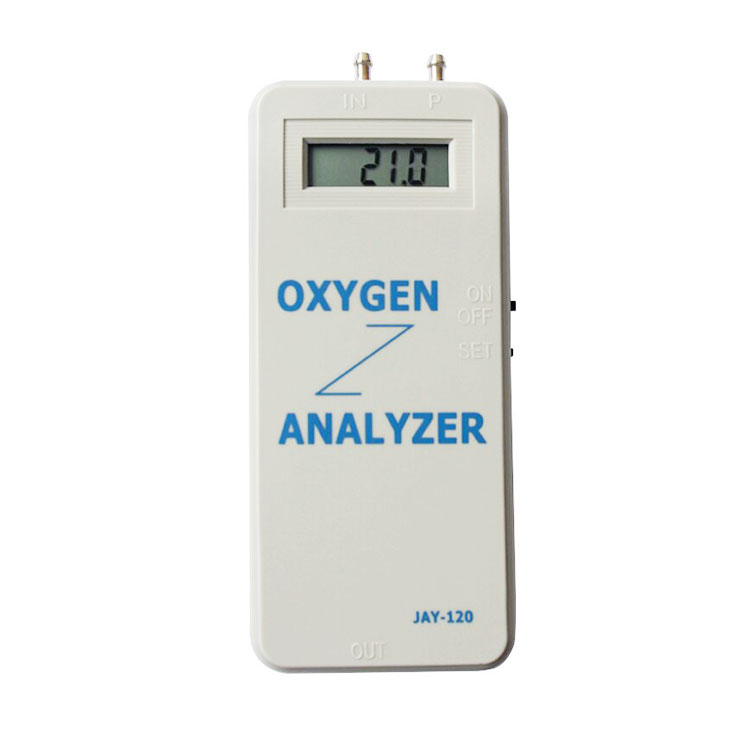

| JAY-120 | |||
| Operating Voltage (V) | DC 9V | Pressure Detection Range | 0-21Psi |
| Operating Temperature (℃) | 5℃~55℃ | Dimension (mm) | 185*80*31mm |
| Storage Temperature (℃) | -5℃~65℃ | Relative Humidity | 5%～85%RH |
| Flow Detection Range | 0-10 L/min | ||
| Flow Detection Accuracy | ±0.2 L/min | ||
| Oxygen Concentration Detection Range（V/V） | 21.0% -- 96.0 % | ||
| Oxygen Concentration Detection Accuracy（V/V） | ± 2% | ||
| Pressure Detection Accuracy | ± 1Psi | ||
Applications

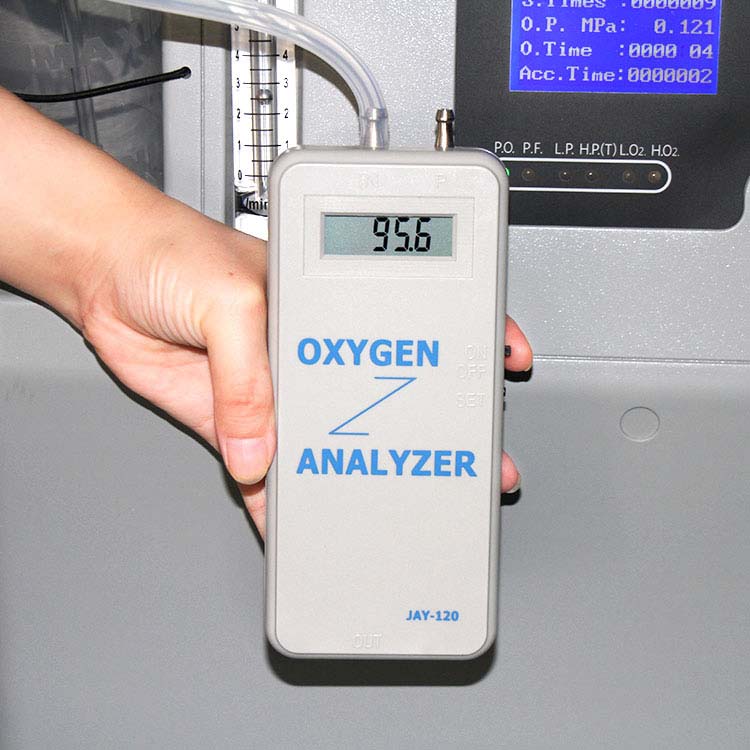

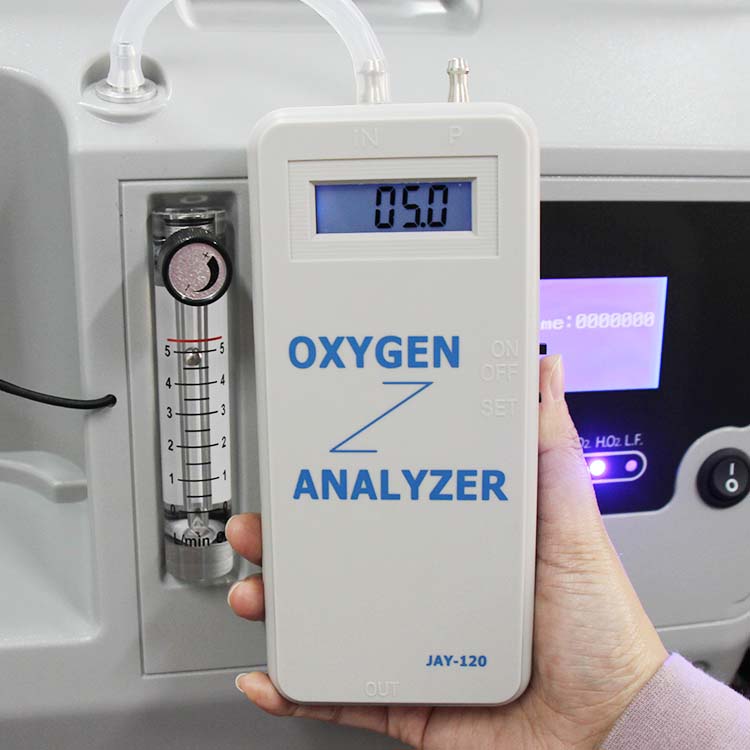

Designed to measure oxygen concentration oxygen flow and outlet pressure for PSA oxygen concentrator.
