+Features

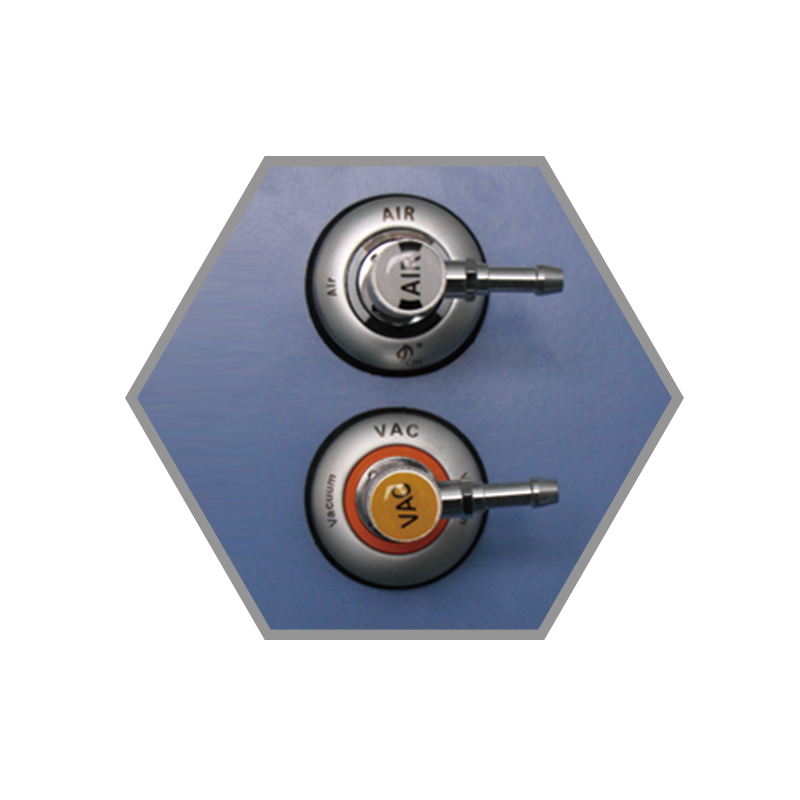

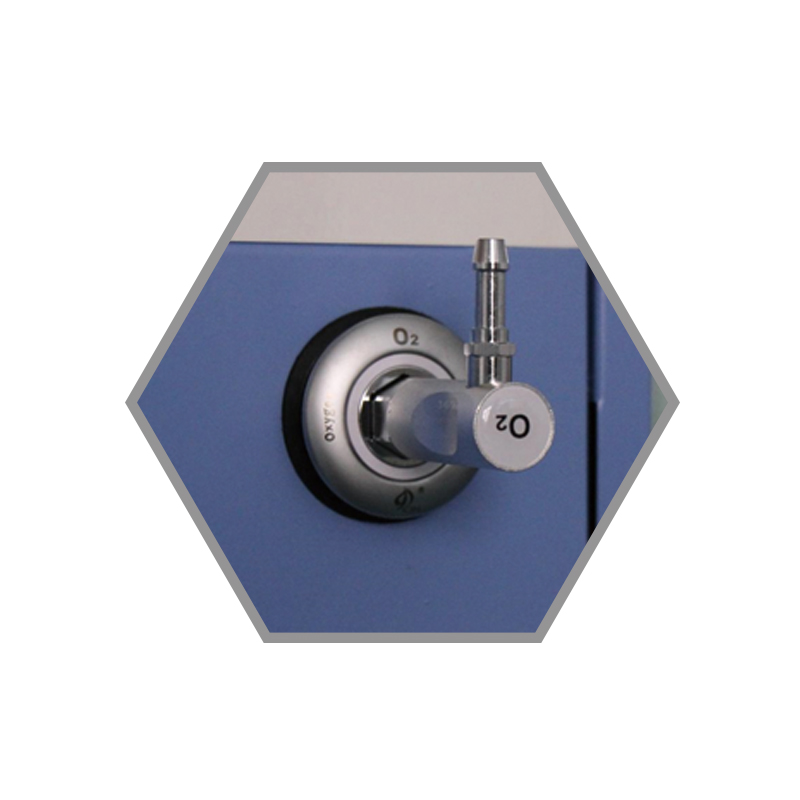

✧ Oxygen, medical air and vacuum can be supplied in one unit;
✧ 10L oxygen, 20-50L medical air with 4 Bar, and -0.7 Bar vacuum are available;
✧ It is mainly used to connect ventilator and anaesthesia machine;

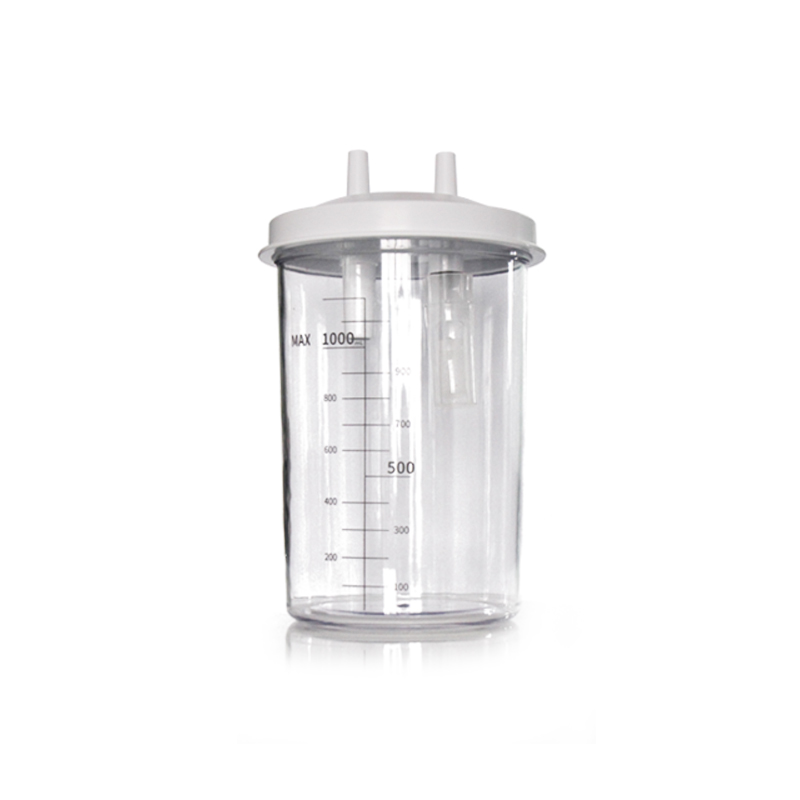

✧ The vacuum function is to absord bleeding, exudate, pus, sputum to reduce the infection during surgery.
Specifications
| General | Model | JAY-2A | |
| Type 20 | Type 50 | ||
| Dimension | 800*440*660mm | 720*630*740mm | |
| Weight | 110kgs | 120kgs | |
| Power Supply | Mains | 220V AC, 50/60 Hz | 220V AC, 50/60 Hz |
| Power consumption | 1200W | 1600W | |
| Switch-on current | 7.0 A | 7.0A | |
| Output data | Output pressure | 60Psi | 50Psi |
| Oxygen flow | Max. 10l/m | Max. 10l/m | |
| Compressor air flow | Max. 20l/m | Max. 50l/m | |
| Oxygen concentration | 93%±3% | 93%±3% | |
| Vacuum | 0...-0.7 bar | 0...-0.7 bar | |
| Noise level | ≤60 dB | ≤60 dB | |
| Monitoring | Pressure gauge | AIR, O2, VAC | AIR, O2, VAC |
| Supervision |
Alarms Visual, audible |
Low purity, High temperature, High&low pressure, Power failure | Low purity, High temperature, High&low pressure, Power failure |
Applications
✧ High pressure oxygen concentrator with air vacuum used for hospital patient beds,for patient sputum aspiration;
✧ Oxygen Concentrator with air vacuum used in operating room,used for suctioned out large quantities of fluid during surgical operations;
✧ It could connect with ventilator and anaesthesia machine at ICU;
✧ It could connect with ventilator and anaesthesia machine at operating room;
✧ This machine widely used for emergency room and treatment room.
