+Features
✧ With medical grade oxygen concentration above 90%, better treatment effect for patients with pulmonary fibrosis;
✧ Innovative cooling technology to ensure 24/7/365 operation;
✧ Humidifier bottle with a pressure relief value of 6PSI, safer and more comfortable;
✧ Four flexible castors with two brakes, easy to move or situate in any direction, safer and more convenient;
✧ Simple operation functions and easy-to-read LCD Display;
✧ JAY-5HW can provide medical grade oxygen and automatically adapting to different altitude level;
✧ Apply for HFNC, provide oxygen with stable high concentration, more comfortable;
✧ Apply for HBOC.
Specification

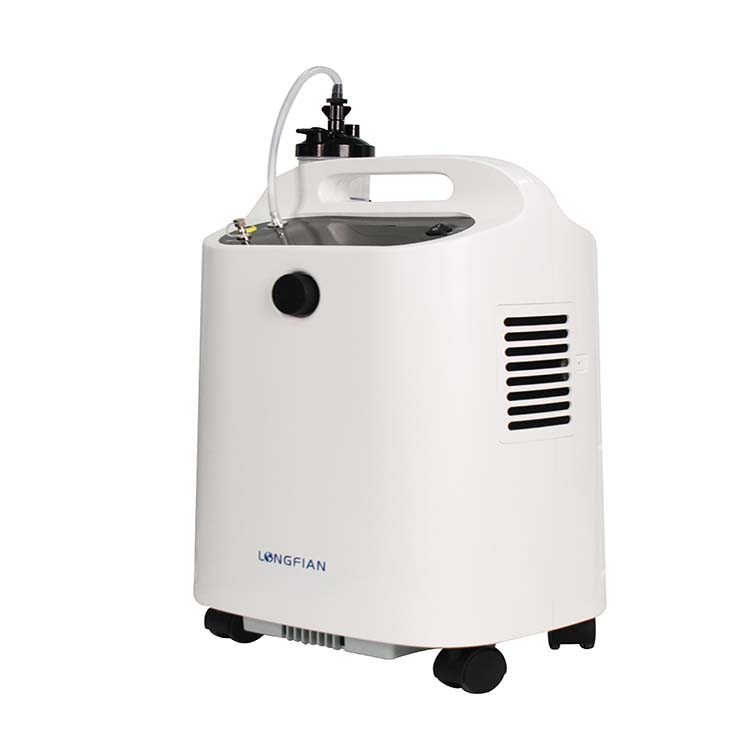

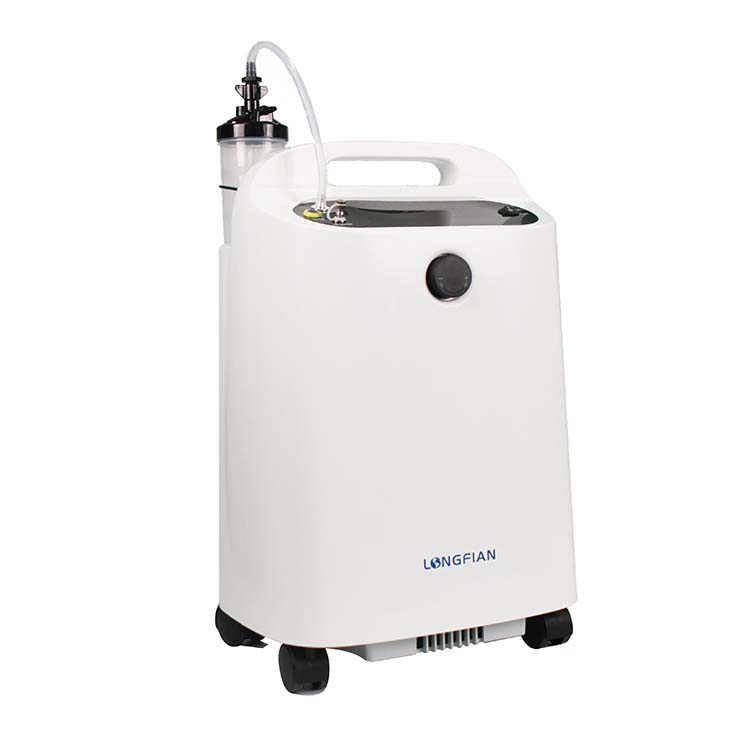

| JAY-5HW | |||
| Flow Rate |
0.5-5L/min |
Net weight | 15Kgs |
| Oxygen Concentration | 93% (±3%) | Power Consumption | ≤ 350W |
| Outlet Pressure |
6-10PSI(0.04-0.07mpa); |
Input Frequency | 50Hz ; 60 Hz |
| Sound Level | ≤38dB | Input Voltage | AC230V ± 10% ；AC110V ±10% |
| Alarm |
Configuration A: Oxygen concentration on-site display. Low flow visual and audble alarm. |
||
